Практические примеры по протоколу SOAP

Пример 1.

Клиент

<?php

echo "<h1>ПРОТОКОЛ SOAP<br></h1><hr>";

@$sub=$_GET['sub'];

@$rate=$_GET['rate'];

if (!$sub)

{

echo "<h1>Введите цену и ставку налога</h1>

<form>

<p>Цена:<input type=text name='sub'>

Ставка налога:<input type=text name='rate'>

<input type=submit><input type=reset>

</form>";

}

else

{

$parameters=array('rate'=>$_GET['rate'],'sub'=>$_GET['sub']);

require_once('nusoap.php');

$sclient=new soapclient('http://localhost/NUSOAP/newserver1.php');

$result=$sclient->call('calc',$parameters);

echo 'РЕЗУЛЬТАТ РАСЧЕТА: ',$result;

echo '<h2>Запрос</h2>';

echo '<pre>'. htmlspecialchars($sclient->request, ENT_QUOTES).'</pre>';

echo '<h2>Ответ</h2>';

echo '<pre>'. htmlspecialchars($sclient->response, ENT_QUOTES).'</pre>';

}

?>

Инициализация параметров





Сервер

<?php

require_once('nusoap.php');

$server = new soap_server;

$server->register('calc');

function calc($rate,$sub)

{

$result=$sub*$rate/100.+$sub;

return $result;

}

$HTTP_RAW_POST_DATA=isset($HTTP_RAW_POST_DATA)? $HTTP_RAW_POST_DATA : '';

$server->service($HTTP_RAW_POST_DATA);

?>

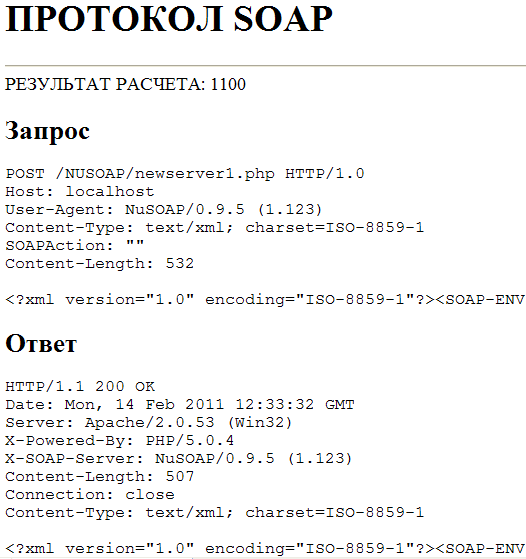

Результат





Пример 2 с включением WSDL.

Клиент

<?php

// Подключаем код NuSOAP

//(библиотека РНР упрощает создание клиентов и серверов SOAP)

require_once('nusoap.php');

// Создаем экземпляр клиента

$client = new soapclient('http://localhost/NUSOAP/server_wdsl.php?wsdl', true);

// Вызываем SOAP-метод

$result = $client->call('hello', array('name' => 'Saule'));

// Отображаем результат

echo '<h2>Результат</h2><pre>';

print_r($result);

echo '</pre>';

// Отображаем запрос и ответ

echo '<h2>Запрос</h2>';

echo '<pre>' . htmlspecialchars($client->request, ENT_QUOTES) . '</pre>';

echo '<h2>Ответ</h2>'; echo '<h2>Ответ</h2>';

echo '<pre>' . htmlspecialchars($client->response, ENT_QUOTES) . '</pre>';

// Отображаем отладочные сообщения

//echo '<h2>Отладка</h2>';

//echo '<pre>' . htmlspecialchars($client->debug_str, ENT_QUOTES) . '</pre>';

?>





Сервер

<?php

// Подключаем код NuSOAP

//(библиотека РНР упрощает создание клиентов и серверов SOAP)

require_once('nusoap.php');

$server = new soap_server(); // Создаем экземпляр сервера

// Инициализируем поддержку WSDL

//$server->configureWSDL('hellowsdl', 'urn:hellowsdl');

$server->configureWSDL('server_wsdl.php', 'urn:server_wsdl');

// Устанавливаем пространство имен с префиксом tns для WSDL-схемы

$server->wsdl->schemaTargetNamespace = 'urn:server_wsdl';

// Регистрируем предоставляемый метод

$server->register('hello', // название метода

array('name' => 'xsd:string'), // входные параметры

array('return' => 'xsd:string'), // выходные параметры

'urn:server_wsdl', // пространство имен

'urn:server_wsdl#hello', // soapaction

'rpc', // стиль

'encoded', // использование

'Says hello to the caller' ); // описание

// Определяем метод как функцию PHP

function hello($name) {

return 'Salem, ' . $name;}

// Используем HTTP-запрос чтобы вызвать сервис

$HTTP_RAW_POST_DATA = isset($HTTP_RAW_POST_DATA) ?

$HTTP_RAW_POST_DATA : '';

$server->service($HTTP_RAW_POST_DATA); ?>











Результат

Salem,Saule

____________________________________

Запрос

POST /NUSOAP/server_wdsl.php HTTP/1.0

Host: localhost

User-Agent: NuSOAP/0.9.5 (1.123)

Content-Type: text/xml; charset=ISO-8859-1

SOAPAction: "urn:server_wsdl#hello"

Content-Length: 516

<?xml version="1.0" encoding="ISO-8859-1"?><SOAP-ENV:Envelope SOAP-ENV:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:SOAP-ENC="http://schemas.xmlsoap.org/soap/encoding/" xmlns:tns="urn:server_wsdl">

<SOAP-ENV:Body><tns:hello xmlns:tns="urn:server_wsdl">

<name xsi:type="xsd:string">Saule</name></tns:hello></SOAP-ENV:Body>

</SOAP-ENV:Envelope>

Ответ

HTTP/1.1 200 OK

Date: Mon, 21 Feb 2011 08:31:42 GMT

Server: Apache/2.0.53 (Win32)

X-Powered-By: PHP/5.0.4

X-SOAP-Server: NuSOAP/0.9.5 (1.123)

Content-Length: 515

Connection: close

Content-Type: text/xml; charset=ISO-8859-1

<?xml version="1.0" encoding="ISO-8859-1"?><SOAP-ENV:Envelope SOAP-ENV:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:SOAP-ENC="http://schemas.xmlsoap.org/soap/encoding/">

<SOAP-ENV:Body><ns1:helloResponse xmlns:ns1="urn:server_wsdl">

<return xsi:type="xsd:string">Salem, Saule</return></ns1:helloResponse>

</SOAP-ENV:Body></SOAP-ENV:Envelope>





WSDL примера 2

<?xml version="1.0" encoding="ISO-8859-1" ?>

<definitions xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:SOAP-ENC="http://schemas.xmlsoap.org/soap/encoding/" xmlns:tns="urn:server_wsdl" xmlns:soap="http://schemas.xmlsoap.org/wsdl/soap/" xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/" xmlns="http://schemas.xmlsoap.org/wsdl/" targetNamespace="urn:server_wsdl">

<types>

<xsd:schema targetNamespace="urn:server_wsdl">

<xsd:import namespace="http://schemas.xmlsoap.org/soap/encoding/" />

<xsd:import namespace="http://schemas.xmlsoap.org/wsdl/" />

</xsd:schema>

</types>

<message name="helloRequest">

<part name="name" type="xsd:string" />

</message>

<message name="helloResponse">

<part name="return" type="xsd:string" />

</message>

<portType name="server_wsdl.phpPortType">

<operation name="hello">

<documentation>Says hello to the caller</documentation>

<input message="tns:helloRequest" />

<output message="tns:helloResponse" />

</operation>

</portType>

<binding name="server_wsdl.phpBinding" type="tns:server_wsdl.phpPortType">

<soap:binding style="rpc" transport="http://schemas.xmlsoap.org/soap/http" />

<operation name="hello">

<soap:operation soapAction="urn:server_wsdl#hello" style="rpc" />

<input>

<soap:body use="encoded" namespace="urn:server_wsdl" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" />

</input>

<output>

<soap:body use="encoded" namespace="urn:server_wsdl" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" />

</output>

</operation>

</binding>

<service name="server_wsdl.php">

<port name="server_wsdl.phpPort" binding="tns:server_wsdl.phpBinding">

<soap:address location="http://localhost/NUSOAP/server_wdsl.php" />

</port>

</service>

</definitions>


*компилировано мной для учебных целей: использованы материалы из публикаций (http://www.scottnichol.com/soap.htm и кн.В.Будилова "РНР5 экспресс-курс").
